ACC4000A 400T Sürünen vinç, karmaşık arazide güvenli HJDB Yük Tablosu
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | SANY |
| Model numarası: | ACC4000A |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Bir vinç |
|---|---|
| Fiyat: | Negotiable Price |
| Ambalaj bilgileri: | Müşteri ihtiyaçlarına göre paketleme |
| Teslim süresi: | Sipariş onayına göre |
| Ödeme koşulları: | L/C,T/T |
| Yetenek temini: | Müşteri ihtiyaçlarına göre arz |
|
Detay Bilgi |
|||
| Maksimum kaldırma kapasitesi: | 400 Ton | Ana bileşenler: | Motor, şanzıman, pompa |
|---|---|---|---|
| Motor gücü: | 450 kW | Hidrolik Vana Markası: | Zirve markalar |
| Seyahat hızı: | 2,5 km/s | İkinci El Vinç: | paletli vinç |
| Maksimum hat hızı: | dakikada 120 metre | vinç tipi: | paletli vinç |
| Vurgulamak: | acc4000a 400t sürünen vinç,acc4000a mini sürünen vinç,400 tonluk mini sürünen vinç |
||
Ürün Açıklaması

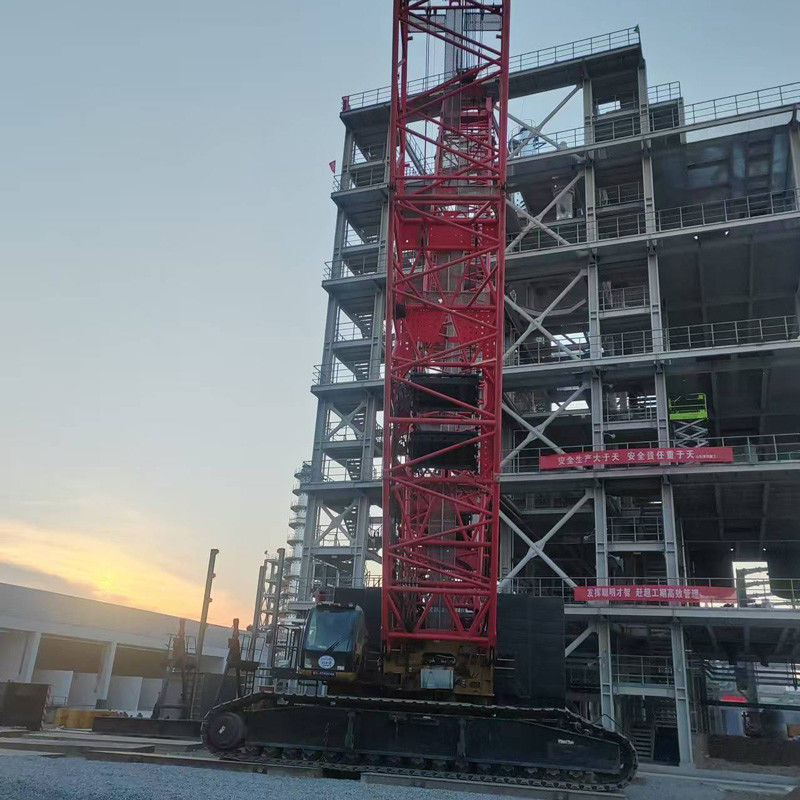

Karmaşık arazilerde güvenli bir şekilde kullanılabilen 400 tonluk sürünen vinç
ACC4000A Sürünen vinç teknik özellikleri
Seyahat talimatları
|
SCC4000A Sürünen vinç HJDB Yük Tablosu |
|||||||||||
|
Ana kanat uzunluğu 72 ~ 126m Süper yükleme yarıçapı 11m Süper yükleme karşı ağırlığı 50t Arka ağırlık 140t Orta ağırlık40t Birim: t |
|||||||||||
|
Yarıçap |
Ana dalganın uzunluğu ((m) |
Yarıçap |
|||||||||
|
m |
72 |
78 |
84 |
90 |
96 |
102 |
108 |
114 |
120 |
126 |
m |
|
11 |
220 |
185 |
|
|
|
|
|
|
|
|
11 |
|
12 |
207.2 |
186 |
160.8 |
|
|
|
|
|
|
|
12 |
|
14 |
178.3 |
172.8 |
160.2 |
134.6 |
118.2 |
101.8 |
88.5 |
|
|
|
14 |
|
16 |
156.1 |
151.6 |
147 |
134.6 |
118.3 |
102 |
88.7 |
77.5 |
67.9 |
59.4 |
16 |
|
18 |
138.4 |
134.7 |
130.8 |
127 |
118.2 |
101.6 |
88.8 |
77.6 |
67.9 |
59.4 |
18 |
|
20 |
124 |
120.9 |
117.5 |
114.2 |
111 |
101.6 |
88.9 |
77.6 |
67.5 |
59.3 |
20 |
|
22 |
112.1 |
109.3 |
106.3 |
103.4 |
100.6 |
98.1 |
88.9 |
77.6 |
67.5 |
59 |
22 |
|
24 |
102 |
99.6 |
96.9 |
94.3 |
91.7 |
89.5 |
87.6 |
77.5 |
67.4 |
58.6 |
24 |
|
26 |
92.3 |
91.2 |
88.7 |
86.4 |
84 |
82.1 |
80.3 |
77.4 |
67.2 |
58.1 |
26 |
|
28 |
83.6 |
83.4 |
81.7 |
79.5 |
77.3 |
75.5 |
74 |
72.1 |
66.7 |
57.7 |
28 |
|
30 |
76.2 |
76 |
75.4 |
73.5 |
71.4 |
69.8 |
68.4 |
66.7 |
65 |
57.3 |
30 |
|
32 |
69.8 |
69.6 |
69.1 |
68.1 |
66.2 |
64.7 |
63.4 |
61.8 |
60.3 |
56.8 |
32 |
|
34 |
64.3 |
64 |
63.5 |
63 |
61.5 |
60.2 |
59 |
57.4 |
56 |
54.8 |
34 |
|
36 |
59.4 |
59.2 |
58.7 |
58.1 |
57.4 |
56 |
54.9 |
53.5 |
52.1 |
51 |
36 |
|
38 |
55.1 |
54.9 |
54.3 |
53.8 |
53.3 |
52.3 |
51.3 |
49.9 |
48.6 |
47.5 |
38 |
|
40 |
51.3 |
51.1 |
50.5 |
50 |
49.4 |
49 |
48 |
46.7 |
45.5 |
44.4 |
40 |
|
44 |
44.8 |
44.5 |
44 |
43.5 |
42.9 |
42.6 |
42.2 |
41 |
39.9 |
38.9 |
44 |
|
48 |
39.4 |
39.2 |
38.6 |
38.1 |
37.5 |
37.2 |
37 |
36.1 |
35.1 |
34.2 |
48 |
|
52 |
34.9 |
34.7 |
34.1 |
33.6 |
33 |
32.7 |
32.5 |
32 |
31 |
30.2 |
52 |
|
56 |
31.1 |
30.8 |
30.3 |
29.8 |
29.2 |
28.9 |
28.7 |
28.3 |
27.4 |
26.6 |
56 |
|
60 |
27.8 |
27.5 |
27 |
26.5 |
25.9 |
25.6 |
25.4 |
25 |
24.3 |
23.5 |
60 |
|
64 |
24.9 |
24.7 |
24.1 |
23.6 |
23 |
22.8 |
22.6 |
22.1 |
21.5 |
20.8 |
64 |
|
68 |
|
22.1 |
21.6 |
21.1 |
20.5 |
20.2 |
20.1 |
19.6 |
19 |
18.4 |
68 |
|
72 |
|
|
19.4 |
18.9 |
18.3 |
18 |
17.8 |
17.4 |
16.8 |
16.2 |
72 |
|
76 |
|
|
|
16.8 |
16.3 |
16 |
15.9 |
15.4 |
14.8 |
14.2 |
76 |
|
80 |
|
|
|
15 |
14.5 |
14.2 |
14.1 |
13.6 |
13 |
12.4 |
80 |
|
84 |
|
|
|
|
12.8 |
12.6 |
12.5 |
12 |
11.3 |
10.7 |
84 |
|
88 |
|
|
|
|
|
11.1 |
11 |
10.5 |
9.8 |
9.2 |
88 |
|
92 |
|
|
|
|
|
|
9.6 |
9.1 |
8.3 |
7.8 |
92 |
|
96 |
|
|
|
|
|
|
|
7.8 |
7 |
6.5 |
96 |
|
100 |
|
|
|
|
|
|
|
6.5 |
5.8 |
5.3 |
100 |
|
104 |
|
|
|
|
|
|
|
|
4.7 |
4.2 |
104 |
|
108 |
|
|
|
|
|
|
|
|
|
3.2 |
108 |
|
SCC4000A Sürünen vinç HJDB Yük Tablosu |
|||||||||||
|
Ana kanat uzunluğu 72 ~ 126m Süper yükleme yarıçapı 11m Süper yükleme karşı ağırlığı 100t Arka ağırlık 140t Orta ağırlık 40t Birim: t |
|||||||||||
|
Yarıçap |
Ana dalganın uzunluğu ((m) |
Yarıçap |
|||||||||
|
m |
72 |
78 |
84 |
90 |
96 |
102 |
108 |
114 |
120 |
126 |
m |
|
11 |
220 |
185 |
|
|
|
|
|
|
|
|
11 |
|
12 |
220 |
186 |
160.8 |
|
|
|
|
|
|
|
12 |
|
14 |
220 |
185.4 |
160.2 |
134.6 |
118.2 |
101.8 |
88.5 |
|
|
|
14 |
|
16 |
198.5 |
185.7 |
160.4 |
134.6 |
118.3 |
102 |
88.7 |
77.5 |
67.9 |
59.4* |
16 |
|
18 |
176.5 |
172 |
160.5 |
134.1 |
118.2 |
101.6 |
88.8 |
77.6 |
67.9 |
59.4 |
18 |
|
20 |
158.6 |
154.8 |
150.7 |
133.9 |
118 |
101.6 |
88.9 |
77.6 |
67.5 |
59.3 |
20 |
|
22 |
142.9 |
140.4 |
136.9 |
133.4 |
117.7 |
101.6 |
88.9 |
77.6 |
67.5 |
59 |
22 |
|
24 |
129.3 |
128.3 |
125.1 |
122.1 |
117.4 |
102.1 |
88.9 |
77.5 |
67.4 |
58.6 |
24 |
|
26 |
117.3 |
117 |
115 |
112.3 |
109.5 |
102 |
88.8 |
77.4 |
67.2 |
58.1 |
26 |
|
28 |
106.5 |
106.2 |
105.7 |
103.7 |
101.2 |
99.1 |
88.7 |
77.2 |
66.7 |
57.7 |
28 |
|
30 |
97.3 |
97.1 |
96.6 |
96.1 |
93.9 |
92 |
88.6 |
76.6 |
66.2 |
57.3 |
30 |
|
32 |
89.4 |
89.2 |
88.7 |
88.2 |
87.4 |
85.6 |
84.1 |
76 |
65.7 |
56.8 |
32 |
|
34 |
82.6 |
82.4 |
81.8 |
81.3 |
80.8 |
80 |
78.5 |
75.4 |
65.2 |
56.4 |
34 |
|
36 |
76.6 |
76.4 |
75.8 |
75.3 |
74.8 |
74.5 |
73.6 |
71.9 |
64.7 |
55.9 |
36 |
|
38 |
71.3 |
71.1 |
70.5 |
70 |
69.4 |
69.2 |
69 |
67.5 |
64.2 |
55.5 |
38 |
|
40 |
66.6 |
66.3 |
65.8 |
65.3 |
64.7 |
64.4 |
64.3 |
63.4 |
62.1 |
55 |
40 |
|
44 |
58.6 |
58.3 |
57.8 |
57.2 |
56.6 |
56.4 |
56.2 |
55.8 |
55.1 |
54 |
44 |
|
48 |
51.9 |
51.7 |
51.2 |
50.6 |
50 |
49.7 |
49.6 |
49.1 |
48.8 |
48.2 |
48 |
|
52 |
46.4 |
46.2 |
45.6 |
45.1 |
44.5 |
44.2 |
44 |
43.6 |
43.2 |
43 |
52 |
|
56 |
41.7 |
41.5 |
40.9 |
40.4 |
39.8 |
39.5 |
39.3 |
38.9 |
38.5 |
38.2 |
56 |
|
60 |
37.6 |
37.4 |
36.9 |
36.3 |
35.8 |
35.5 |
35.3 |
34.9 |
34.5 |
34.2 |
60 |
|
64 |
34.1 |
33.9 |
33.3 |
32.8 |
32.2 |
32 |
31.8 |
31.3 |
31 |
30.7 |
64 |
|
68 |
|
30.7 |
30.2 |
29.7 |
29.1 |
28.9 |
28.7 |
28.3 |
27.9 |
27.6 |
68 |
|
72 |
|
|
27.5 |
27 |
26.4 |
26.1 |
26 |
25.5 |
25.2 |
24.9 |
72 |
|
76 |
|
|
|
24.5 |
24 |
23.7 |
23.5 |
23.1 |
22.7 |
22.5 |
76 |
|
80 |
|
|
|
22.3 |
21.8 |
21.5 |
21.3 |
20.9 |
20.5 |
20.3 |
80 |
|
84 |
|
|
|
|
19.8 |
19.5 |
19.4 |
18.9 |
18.6 |
18.3 |
84 |
|
88 |
|
|
|
|
|
17.7 |
17.6 |
17.1 |
16.8 |
16.5 |
88 |
|
92 |
|
|
|
|
|
|
15.9 |
15.5 |
15.1 |
14.9 |
92 |
|
96 |
|
|
|
|
|
|
|
14 |
13.6 |
13.4 |
96 |
|
100 |
|
|
|
|
|
|
|
12.6 |
12.2 |
12 |
100 |
|
104 |
|
|
|
|
|
|
|
|
10.9 |
10.7 |
104 |
|
108 |
|
|
|
|
|
|
|
|
|
9.5 |
108 |
|
SCC4000A Sürünen vinç HJDB Yük Tablosu |
|||||||||||
|
Ana kanat uzunluğu 72 ~ 126m Süper yükleme yarıçapı 11m Süper yükleme karşı ağırlığı 150t Arka ağırlık 140t Orta ağırlık 40t Birim: t |
|||||||||||
|
Yarıçap |
Ana dalganın uzunluğu ((m) |
Yarıçap |
|||||||||
|
m |
72 |
78 |
84 |
90 |
96 |
102 |
108 |
114 |
120 |
126 |
m |
|
11 |
220 |
185 |
|
|
|
|
|
|
|
|
11 |
|
12 |
220 |
186 |
160.8* |
|
|
|
|
|
|
|
12 |
|
14 |
220 |
185.4 |
160.2 |
134.6 |
118.2* |
101.8* |
88.5* |
|
|
|
14 |
|
16 |
220 |
185.7 |
160.4 |
134.6 |
118.3 |
102.0* |
88.7* |
77.5* |
67.9* |
59.4* |
16 |
|
18 |
201.2 |
185.7 |
160.5 |
134.1 |
118.2 |
101.6 |
88.8* |
77.6* |
67.9* |
59.4* |
18 |
|
20 |
180.2 |
179.8 |
160.3 |
133.9 |
118 |
101.6 |
88.9 |
77.6* |
67.5* |
59.3* |
20 |
|
22 |
162.9 |
162.5 |
160 |
133.7 |
117.7 |
101.6 |
88.9 |
77.6 |
67.5* |
59.0* |
22 |
|
24 |
148.4 |
148 |
147.1 |
133.4 |
117.4 |
102.1 |
88.9 |
77.5 |
67.4 |
58.6* |
24 |
|
26 |
136.1 |
135.6 |
134.8 |
133.7 |
117 |
102 |
88.8 |
77.4 |
67.2 |
58.1 |
26 |
|
28 |
125.2 |
124.8 |
124 |
123.3 |
116.5 |
101.9 |
88.7 |
77.2 |
66.7 |
57.7 |
28 |
|
30 |
115.6 |
115.2 |
114.4 |
113.7 |
112.9 |
100.5 |
88.6 |
76.6 |
66.2 |
57.3 |
30 |
|
32 |
107.2 |
106.8 |
106 |
105.3 |
104.5 |
96.9 |
88.4 |
76 |
65.7 |
56.8 |
32 |
|
34 |
99.8 |
99.4 |
98.6 |
97.9 |
97.1 |
93.9 |
88.2 |
75.4 |
65.2 |
56.4 |
34 |
|
36 |
93.2 |
92.8 |
92.1 |
91.4 |
90.6 |
90.1 |
87.5 |
74.8 |
64.7 |
55.9 |
36 |
|
38 |
87.3 |
87 |
86.2 |
85.5 |
84.7 |
84.3 |
84 |
74.2 |
64.2 |
55.5 |
38 |
|
40 |
81.9 |
81.6 |
80.9 |
80.2 |
79.4 |
79 |
78.8 |
73.6 |
63.6 |
55 |
40 |
|
44 |
72.3 |
72.1 |
71.5 |
71 |
70.4 |
69.9 |
69.7 |
69.1 |
62.6 |
54.1 |
44 |
|
48 |
64.5 |
64.2 |
63.7 |
63.1 |
62.6 |
62.3 |
62.1 |
61.5 |
61 |
53.1 |
48 |
|
52 |
57.9 |
57.6 |
57.1 |
56.6 |
56 |
55.7 |
55.5 |
55.1 |
54.7 |
52.2 |
52 |
|
56 |
52.3 |
52.1 |
51.5 |
51 |
50.4 |
50.1 |
49.9 |
49.5 |
49.1 |
48.8 |
56 |
|
60 |
47.5 |
47.3 |
46.7 |
46.2 |
45.6 |
45.3 |
45.2 |
44.7 |
44.3 |
44.1 |
60 |
|
64 |
43.3 |
43.1 |
42.6 |
42 |
41.4 |
41.2 |
41 |
40.6 |
40.2 |
39.9 |
64 |
|
68 |
|
39.4 |
38.9 |
38.4 |
37.8 |
37.5 |
37.3 |
36.9 |
36.5 |
36.2 |
68 |
|
72 |
|
|
35.6 |
35.1 |
34.5 |
34.3 |
34.1 |
33.7 |
33.3 |
33 |
72 |
|
76 |
|
|
|
32.2 |
31.6 |
31.4 |
31.2 |
30.8 |
30.4 |
30.1 |
76 |
|
80 |
|
|
|
29.6 |
29 |
28.8 |
28.6 |
28.2 |
27.8 |
27.5 |
80 |
|
84 |
|
|
|
|
26.7 |
26.4 |
26.3 |
25.8 |
25.4 |
25.1 |
84 |
|
88 |
|
|
|
|
|
24.3 |
24.1 |
23.7 |
23.3 |
22.9 |
88 |
|
92 |
|
|
|
|
|
|
22.2 |
21.7 |
21.3 |
20.9 |
92 |
|
96 |
|
|
|
|
|
|
|
19.9 |
19.4 |
19.1 |
96 |
|
100 |
|
|
|
|
|
|
|
18.2 |
17.7 |
17.4 |
100 |
|
104 |
|
|
|
|
|
|
|
|
16.2 |
15.9 |
104 |
|
108 |
|
|
|
|
|
|
|
|
|
14.4 |
108 |
|
SCC4000A Sürünen vinç HJDB Yük Tablosu |
|||||||||||
|
Ana kanat uzunluğu 72 ~ 126m Süper yükleme yarıçapı 11m Süper yükleme karşı ağırlığı 200t Arka ağırlık 140t Orta ağırlık 40t Birim: t |
|||||||||||
|
Yarıçap |
Ana dalganın uzunluğu ((m) |
Yarıçap |
|||||||||
|
m |
72 |
78 |
84 |
90 |
96 |
102 |
108 |
114 |
120 |
126 |
m |
|
11 |
220* |
185.0* |
|
|
|
|
|
|
|
|
11 |
|
12 |
220 |
186.0* |
160.8* |
|
|
|
|
|
|
|
12 |
|
14 |
220 |
185.4 |
160.2* |
134.6* |
118.2* |
101.8* |
88.5* |
|
|
|
14 |
|
16 |
220 |
185.7 |
160.4 |
134.6* |
118.3* |
102.0* |
88.7* |
77.5* |
67.9* |
59.4* |
16 |
|
18 |
220 |
185.7 |
160.5 |
134.1 |
118.2* |
101.6* |
88.8* |
77.6* |
67.9* |
59.4* |
18 |
|
20 |
200.4 |
185.6 |
160.3 |
133.9 |
118 |
101.6* |
88.9* |
77.6* |
67.5* |
59.3* |
20 |
|
22 |
181.3 |
180.9 |
160 |
133.7 |
117.7 |
101.6* |
88.9* |
77.6* |
67.5* |
59.0* |
22 |
|
24 |
165.3 |
164.9 |
159.1 |
133.4 |
117.4 |
102.1 |
88.9* |
77.5* |
67.4* |
58.6* |
24 |
|
26 |
151.7 |
151.3 |
150.4 |
133.7 |
117 |
102 |
88.8 |
77.4* |
67.2* |
58.1* |
26 |
|
28 |
140 |
139.6 |
138.7 |
133.2 |
116.5 |
101.9 |
88.7 |
77.2 |
66.7* |
57.7* |
28 |
|
30 |
129.8 |
129.4 |
128.6 |
127.8 |
116.6 |
100.5 |
88.6 |
76.6 |
66.2* |
57.3* |
30 |
|
32 |
120.9 |
120.4 |
119.6 |
118.9 |
116.1 |
96.9 |
88.4 |
76 |
65.7 |
56.8* |
32 |
|
34 |
112.9 |
112.5 |
111.7 |
111 |
110.1 |
93.9 |
88.2 |
75.4 |
65.2 |
56.4* |
34 |
|
36 |
105.9 |
105.5 |
104.7 |
103.9 |
103.1 |
90.4 |
87.5 |
74.8 |
64.7 |
55.9 |
36 |
|
38 |
99.6 |
99.2 |
98.4 |
97.6 |
96.8 |
86.9 |
86.8 |
74.2 |
64.2 |
55.5 |
38 |
|
40 |
93.8 |
93.4 |
92.7 |
91.9 |
91.1 |
84 |
86.2 |
73.6 |
63.6 |
55 |
40 |
|
44 |
83.7 |
83.4 |
82.6 |
81.9 |
81.1 |
78.8 |
80.5 |
72.3 |
62.6 |
54.1 |
44 |
|
48 |
75.2 |
74.9 |
74.2 |
73.4 |
72.7 |
72.3 |
72 |
71.2 |
61.5 |
53.1 |
48 |
|
52 |
68 |
67.7 |
67 |
66.3 |
65.5 |
65.1 |
64.8 |
64.3 |
60.4 |
52.2 |
52 |
|
56 |
61.9 |
61.5 |
60.8 |
60.1 |
59.4 |
59 |
58.7 |
58.1 |
57.6 |
50.5 |
56 |
|
60 |
56.5 |
56.2 |
55.5 |
54.8 |
54 |
53.6 |
53.4 |
52.8 |
52.3 |
48.5 |
60 |
|
64 |
51.8 |
51.5 |
50.8 |
50.1 |
49.4 |
49 |
48.7 |
48.2 |
47.7 |
46.5 |
64 |
|
68 |
|
47.3 |
46.7 |
46 |
45.2 |
44.9 |
44.6 |
44.1 |
43.6 |
43.2 |
68 |
|
72 |
|
|
43 |
42.3 |
41.6 |
41.2 |
41 |
40.4 |
39.9 |
39.6 |
72 |
|
76 |
|
|
|
39 |
38.3 |
37.9 |
37.7 |
37.1 |
36.7 |
36.3 |
76 |
|
80 |
|
|
|
36 |
35.3 |
35 |
34.7 |
34.2 |
33.7 |
33.4 |
80 |
|
84 |
|
|
|
|
32.6 |
32.3 |
32.1 |
31.5 |
31 |
30.7 |
84 |
|
88 |
|
|
|
|
|
29.8 |
29.6 |
29.1 |
28.6 |
28.3 |
88 |
|
92 |
|
|
|
|
|
|
27.4 |
26.8 |
26.4 |
26.1 |
92 |
|
96 |
|
|
|
|
|
|
|
24.8 |
24.3 |
24 |
96 |
|
100 |
|
|
|
|
|
|
|
22.9 |
22.4 |
22.1 |
100 |
|
104 |
|
|
|
|
|
|
|
|
20.7 |
20.4 |
104 |
|
108 |
|
|
|
|
|
|
|
|
|
18.8 |
108 |
